First steps with the UMI3D Environment Development Kit

This tutorial aims to help Unity developers to start creating Collaborative Virtual Environments with the UMI3D SDK. The created Collaborative Virtual Environment is a basic world only containing avatars for the users and one interaction. For a more advanced sample, have a look on the UMI3D Samples project.

Important

This tutorial is old and need to be updated.

Requirements

UMI3D Version: 1.1.r.210402+
Compatible UMI3D Desktop Browser: 1.0.5.210402+
Compatible UMI3D OpenVR Browser: 1.0.5.210402+

Set up the server

Add a server

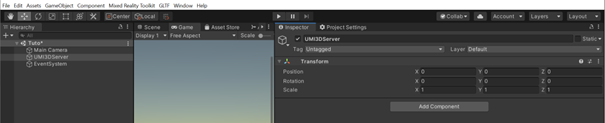

Create an empty GameObject and eventually rename it “UMI3DServer”

Add a UMI3DMainThreadDispatcher component to the GameObject

Add a UMI3DCollaborationServer component to the GameObject

Configure the server

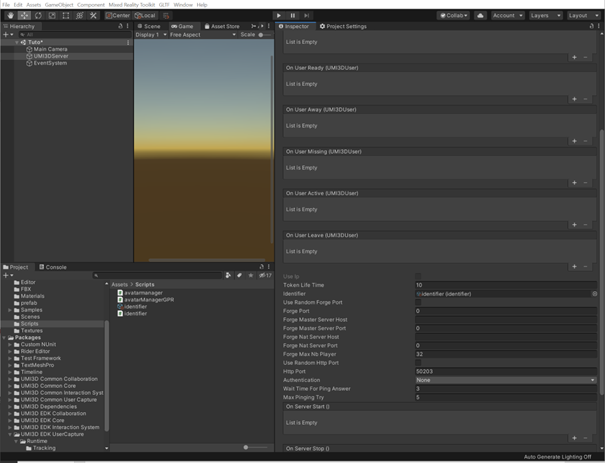

Fill the HttpPort field (e.g. 50203) of the UMI3DCollaborationServer component

Configure identification

Create an Identifier script and paste the code below inside.

using System.Collections;
using System.Collections.Generic;
using umi3d.common;
using umi3d.common.collaboration;
using umi3d.edk.collaboration;
using UnityEngine;

[CreateAssetMenu(fileName = "identifier", menuName = "UMI3D/Identifier")]
public class identifier : IdentifierApi
{
    public string pin = "0000"; // (1)

    ///<inheritdoc/>
    public override UMI3DAuthenticator GetAuthenticator(ref AuthenticationType type)
    {
        return new UMI3DAuthenticator(pin);
    }
}

You could define any other numeric pin.

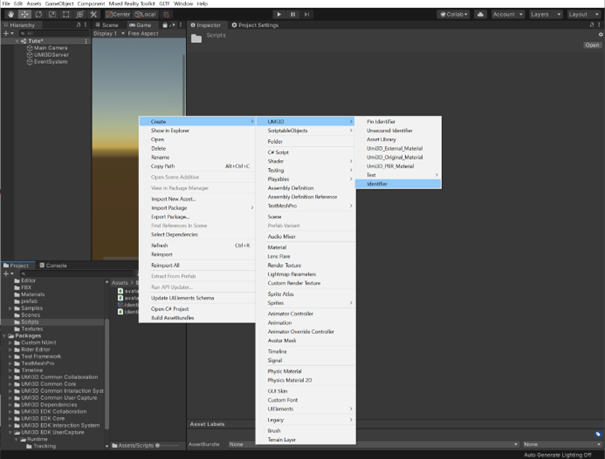

Create an Identifier asset in the Script folder

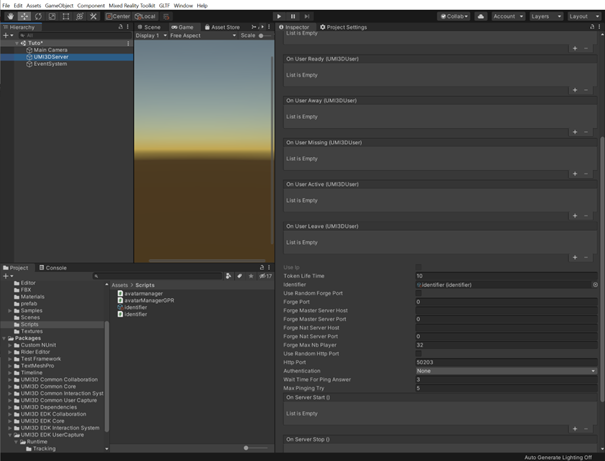

Assign the created Identifier to the Identifier field of the UMI3DCollaborationServer component

Add a launcher

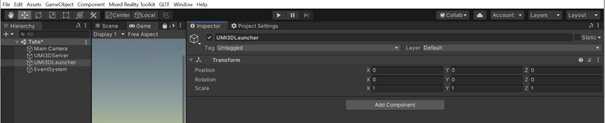

Create an empty GameObject and eventually rename it “UMI3DLauncher”

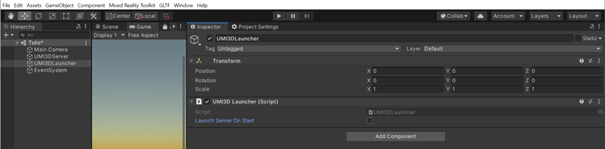

Add a UMI3DLauncher component to the GameObject

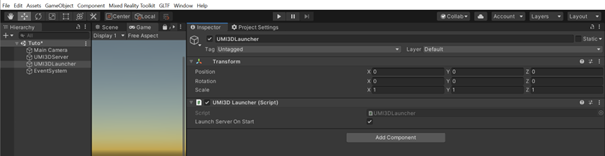

Tick the Launch Server On Start option

Define an environment

Create an environment

Create an empty GameObject and eventually rename it “UMI3DEnv”.

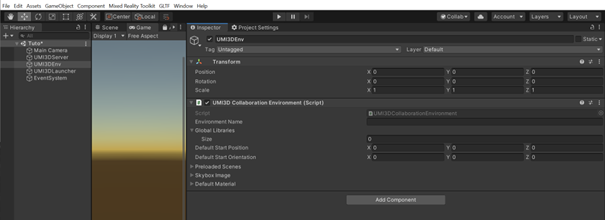

Add a UMI3DCollaborationEnvironment component to the GameObject

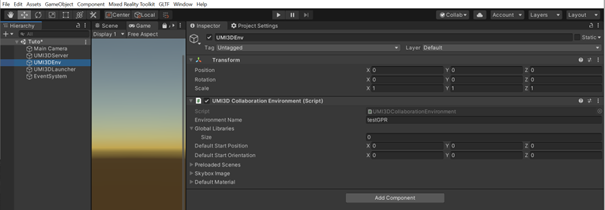

Fill the Environment Name field as wanted (testGPR in the screenshot)

Create a scene

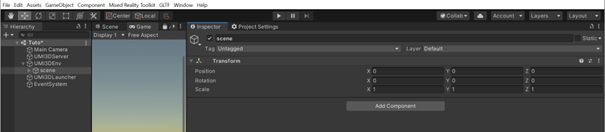

Create an empty GameObject under the UMI3DEnv GameObject and eventually rename it “Scene”

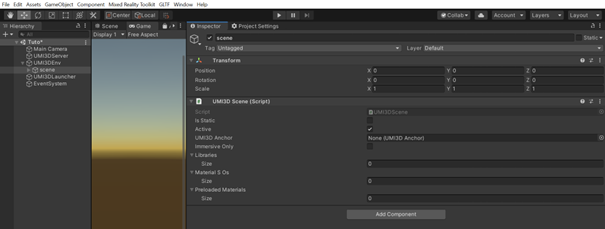

Add a UMI3DScene component to this new GameObject

Create an empty GameObject under the UMI3DEnv GameObject and eventually rename it “SceneEmbo ”

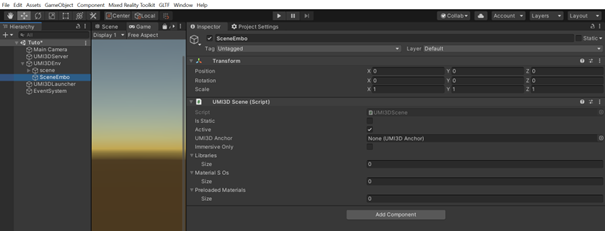

Add a UMI3DScene component to this new GameObject

Set up avatars

Add a custom avatar

Create a empty GameObject and eventually rename it “Perso”

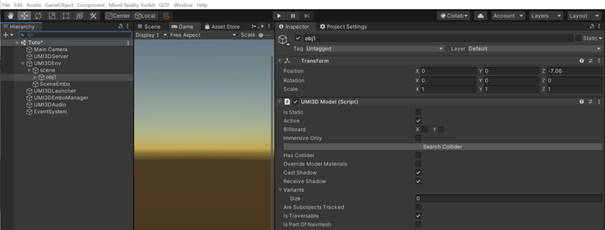

Add a UMI3DModel component to the GameObject

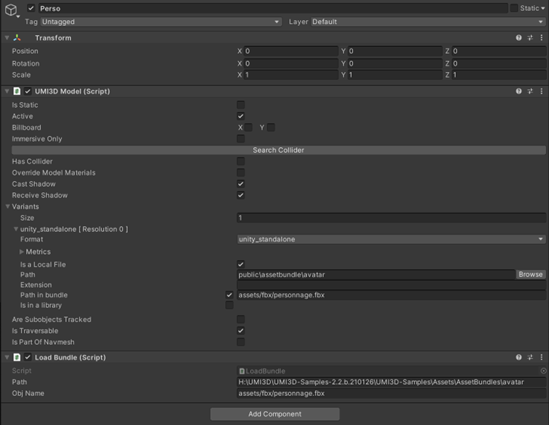

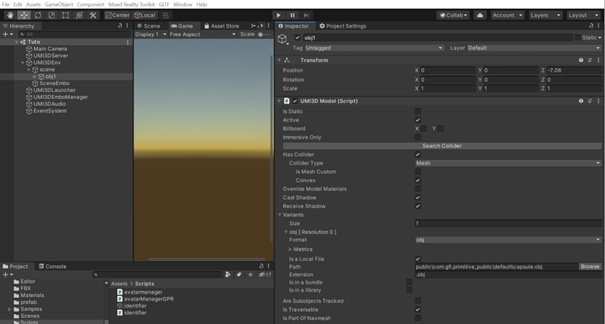

Set the size of Variants to 1, select Unity_standalone and add the path where the AssetBundle is. In order to have a visual representation of the avatar on the environment, I added the “LoadBundle” component.

Create a prefab of the whole asset in the Prefab folder and remove it from the scene.

Configure user body tracking

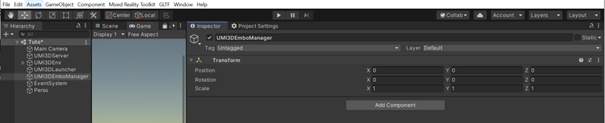

Create an empty GameObject and eventually rename it “UMI3DEmboManager”

Add a UMI3DEmbodimentManager component to this new GameObject

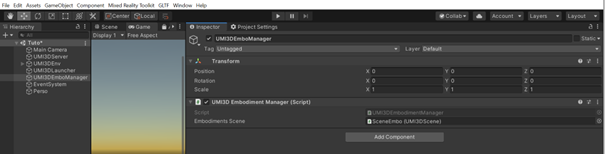

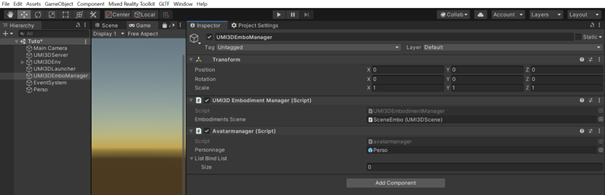

Assign the UMI3DScene of the GameObject "SceneEmbo“ to the Embodiments Scene field of the UMI3DEmbodimentManager component

Create an AvatarManager script and paste the code below inside.

```cs
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using umi3d.edk;
using umi3d.common.userCapture;
using umi3d.edk.userCapture;
using System;
using umi3d.common;

public class AvatarManager : MonoBehaviour
{
    public GameObject modelPrefab;

    //Attacher un objet aux
    static public Dictionary<String, GameObject> avtBones = new Dictionary<String, GameObject>();
    static public Dictionary<String, UMI3DModel> avtModele = new Dictionary<String, UMI3DModel>();
    static public Dictionary<UMI3DUserEmbodimentBone, UMI3DBinding> avtBind = new Dictionary<UMI3DUserEmbodimentBone, UMI3DBinding>();
    public List<bindList> listBindList = new List<bindList>();

    // Start is called before the first frame update
    void Start()
    {
        UMI3DEmbodimentManager.Instance.CreationEvent.AddListener(CreateBone);
        UMI3DEmbodimentManager.Instance.UpdateEvent.AddListener(UpdateBone);
        UMI3DEmbodimentManager.Instance.DeletionEvent.AddListener(DeleteBone);
        UMI3DEmbodimentManager.Instance.NewEmbodiment.AddListener(InstanciateEmbodiment);
    }

    protected void InstanciateEmbodiment(UMI3DAvatarNode AvatarNode)
    {
        GameObject go = GameObject.Instantiate(modelPrefab, AvatarNode.transform);
        go.transform.localPosition = new Vector3(0, -1.60f, 0);
        LoadEntity le = go.GetComponent<UMI3DModel>().GetLoadEntity();
        List<Operation> lop = new List<Operation>();
        lop.Add(le);
        avtModele.Add(AvatarNode.userId, go.GetComponent<UMI3DModel>());
        UMI3DServer.Dispatch(new Transaction() { Operations = lop, reliable = true });
    }

    protected void DeleteBone(UMI3DUserEmbodimentBone UserEmbodimentBone)
    {
        GameObject go = avtBones[UserEmbodimentBone.boneType];
        Destroy(go);
        avtBones.Remove(UserEmbodimentBone.boneType);
    }

    protected void UpdateBone(UMI3DUserEmbodimentBone UserEmbodimentBone)
    {
        GameObject go = avtBones[UserEmbodimentBone.boneType];
        go.transform.localPosition = UserEmbodimentBone.spatialPosition.localPosition;
        go.transform.localRotation = UserEmbodimentBone.spatialPosition.localRotation;
    }

    protected void CreateBone(UMI3DUserEmbodimentBone UserEmbodimentBone)
    {

        String id = UserEmbodimentBone.userId;
        UMI3DAvatarNode avnode = UMI3DEmbodimentManager.Instance.embodimentInstances[id];
        GameObject go = new GameObject("Bone:" + UserEmbodimentBone.boneType);
        go.transform.parent = avnode.transform;
        go.transform.localPosition = UserEmbodimentBone.spatialPosition.localPosition;
        go.transform.localRotation = UserEmbodimentBone.spatialPosition.localRotation;
        avtBones.Add(UserEmbodimentBone.boneType, go);
        bindList bl = listBindList[0];
        foreach (bind b in bl.bList)
        {
            UMI3DBinding binding = new UMI3DBinding()
            {
                boneType = b.boneType,
                rigName = b.rigName,
                offsetRotation = Quaternion.Euler(b.rotationOffset),
                offsetPosition = b.positionOffset,
                node = avtModele[id]
            };

        }
    }

    // Update is called once per frame
    void Update()
    {

    }

    [System.Serializable]
    public class bind
    {
        [ConstStringEnum(typeof(BoneType))]
        public String boneType;
        public String rigName;
        public Vector3 positionOffset;
        public Vector3 rotationOffset;

    }
    [System.Serializable]
    public class bindList
    {
        public List<bind> bList = new List<bind>();
    }
}
```

Add a AvatarManager component (with the created script) to the “UMI3DEmboManager” GameObject

Add the « X » prefab in the modelPrefab field of the AvatarManager component

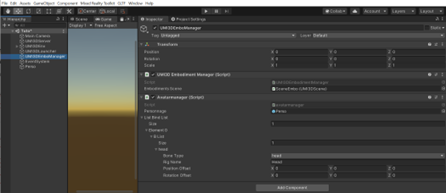

Set the size of List Bind List to 1, the size of B List to 1, choose “head” as a BoneType and set the name of the corresponding Bone in the model's structure (“Head” in our case)
